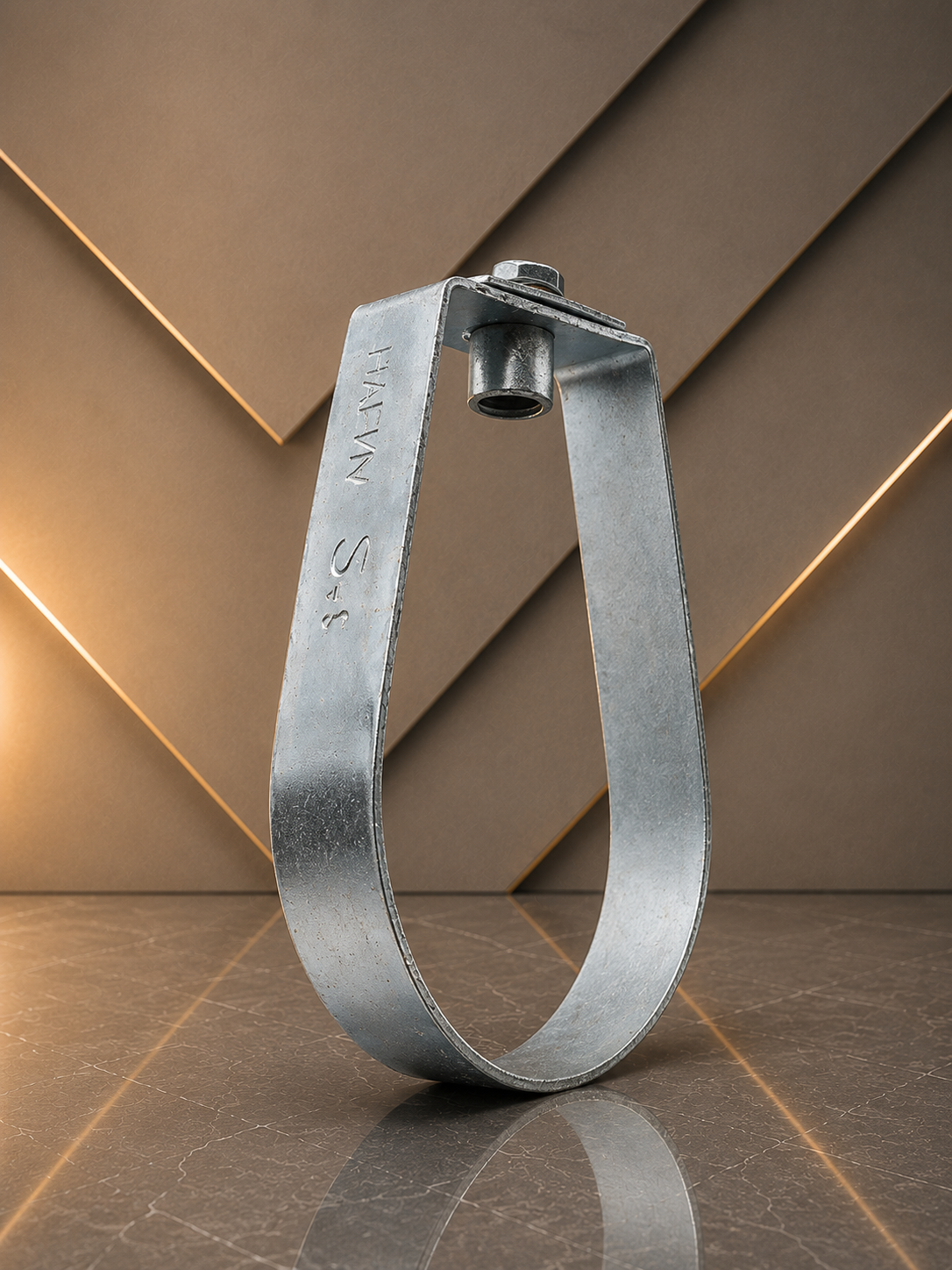

Sprinkler Hanger

Sprinkler Hanger is specifically engineered to provide dependable support for fire sprinkler piping systems in commercial, industrial, and residential buildings. Its robust construction ensures accurate pipe alignment, maintains system stability, and supports the weight of overhead sprinkler pipelines for safe and efficient operation.

Manufactured from premium-quality steel with precision engineering, Sprinkler Hanger offers excellent strength, corrosion resistance, and long-lasting durability. It is widely used in fire protection systems, warehouses, factories, office buildings, and public facilities where reliable pipe suspension and secure installation are essential for maintaining system performance.

Construction Features

1) A one-piece clip guarantees a high permissible load.
2) For use in firefighting and sprinkler installation.br/> 3) Easy mounting without tools.
4) Locking device allows easy pre-mounting.

Product Specification

1) Material: Carbon Steel
2) Designed to meet MSS SP-58 Type-10
3) Electrogalvanized as per ASTM B633 Standards
4) Hot-dip galvanized and stainless-steel options provided on request.

⁠ ⁠ ⁠Sprinkler Hanger Product Dimensions

Product Code Size (Inches) D (mm) G H (mm) Safe Load
DPRSC028 3/4" 26.7 M10 61 220
DPRSC035 1" 33.4 M10 70 220
DPRSC040 1 1/4" 42.1 M10 78 220
DPRSC048 1 1/2" 48.2 M10 84 220
DPRSC060 2" 60.3 M10 102 220
DPRSC075 2 1/2" 73 M10 118 300
DPRSC090 3" 88.9 M10 144 300
DPRSC115 4" 114.3 M10 176 300
DPRSC168 6" 168.3 M12 262 550
DPRSC200 8" 219.1 M12 305 1300
