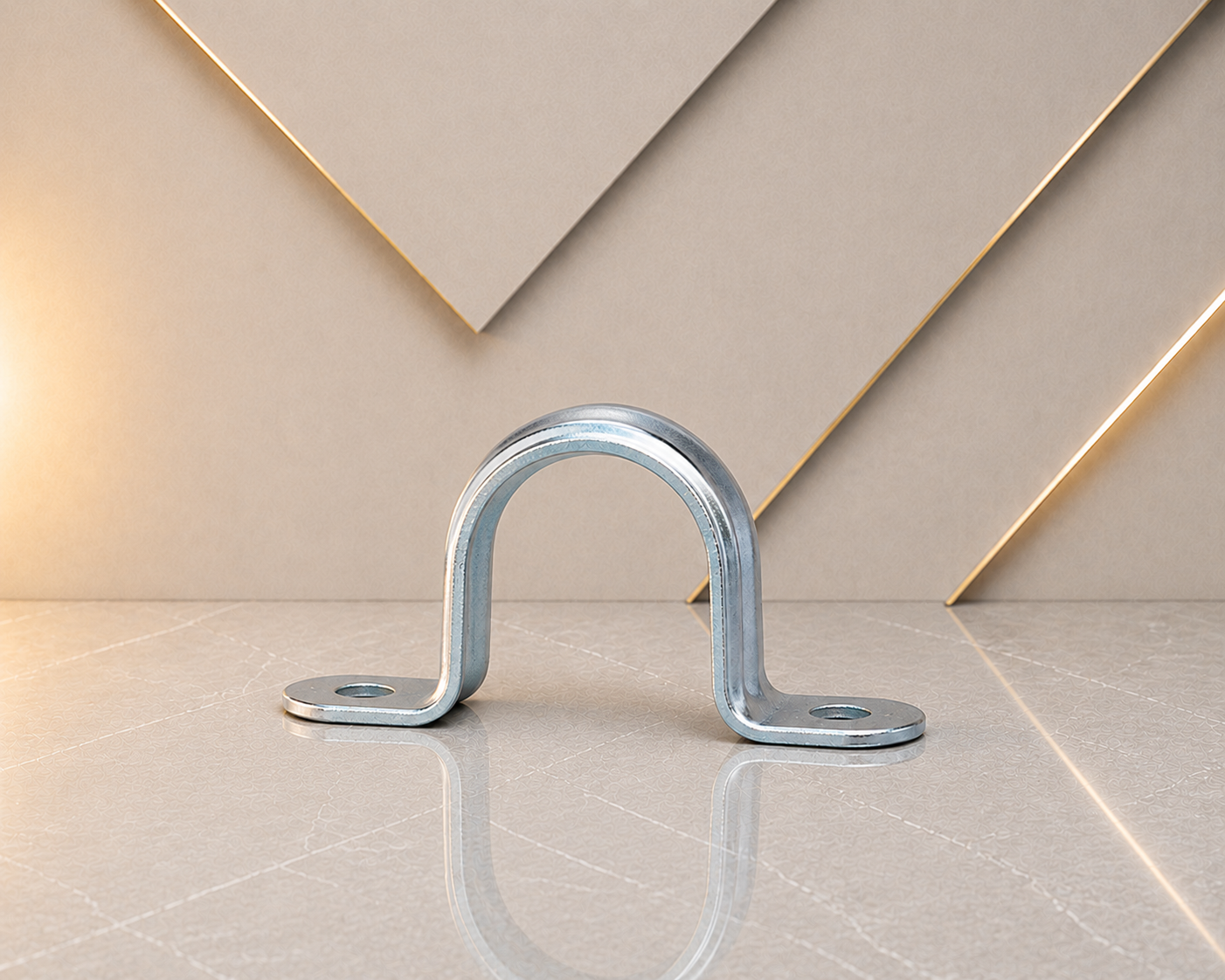

U Strap Clamp

U Strap Clamp is a reliable pipe fastening solution designed to provide secure and stable support for various piping systems. Its U-shaped strap design ensures a firm grip around pipes while allowing easy installation and adjustment. It helps maintain proper pipe alignment and prevents unwanted movement during operation.

Manufactured from high-quality steel, U Strap Clamp offers excellent strength, durability, and resistance to mechanical stress. It is widely used in HVAC systems, plumbing networks, industrial piping, and mechanical support applications where dependable pipe fixing, easy maintenance, and long-lasting performance are required.

Construction Features

1) Used to mount plain or insulated pipes.
2) Can be used with rubber support inserts.

Product Specification

1) Material: Mild Steel.
2) Designed to meet MSS SP-58 Type-26.
3) Electrogalvanized as per ASTM B633.
4) Hot-dip galvanized as per ASTM A123.

⁠ ⁠ ⁠U Strap Clamp Product Dimensions

Product Code Pipe Size Pipe OD Overall Dimension A Distance B/W Two Bolt B Screw Size Max Load
DPUSC028 1/2" DN15 21.3 76 51 M8 500
DPUSC035 3/4" DN20 26.7 82 57 M8 500
DPUSC035 1" DN25 33.4 89 64 M8 500
DPUSC040 1 1/4" DN32 42.1 96 71 M8 500
DPUSC048 1 1/2" DN40 48.2 102 77 M8 500
DPUSC054 2" DN50 54 108 83 M8 500
DPUSC060 2" DN50 60.3 114 89 M8 500
DPUSC065 2 1/2" DN65 73 145 113 M8 600
DPUSC082 3" DN80 82 152 120 M8 600
DPUSC090 3" DN80 88.9 160 128 M8 600
DPUSC100 3 1/2" DN90 101.6 170 138 M8 600
DPUSC108 4" DN100 108 178 146 M8 600
DPUSC115 4" DN100 114.3 185 153 M8 600
DPUSC126 5" 126 196 146 M10 600
DPUSC125 5" DN125 141.3 210 178 M10 600
DPUSC168 6" DN150 168.3 237 205 M10 600
DPUSC200 8" DN200 219.1 289 257 M10 800
DPUSC273 10" DN250 273 364 323 M18 1250
DPUSC300 12" DN300 323.8 417 376 M18 1250
DPUSC350 14" DN350 355.6 447 409 M18 1800
DPUSC400 16" DN400 406.4 497 459 M18 1800
DPUSC450 18" DN450 457.2 547 509 M18 1800
DPUSC500 20" DN500 508.2 599 561 M18 1800
DPUSC600 24" DN600 609.6 701 663 M18 1800
DPUSC658 - 658 766 721 M18 2300
DPUSC690 - 690 798 753 M18 2300
DPUSC760 - 760 868 823 M18 2300
DPUSC863 - 863 971 926 M18 2300
