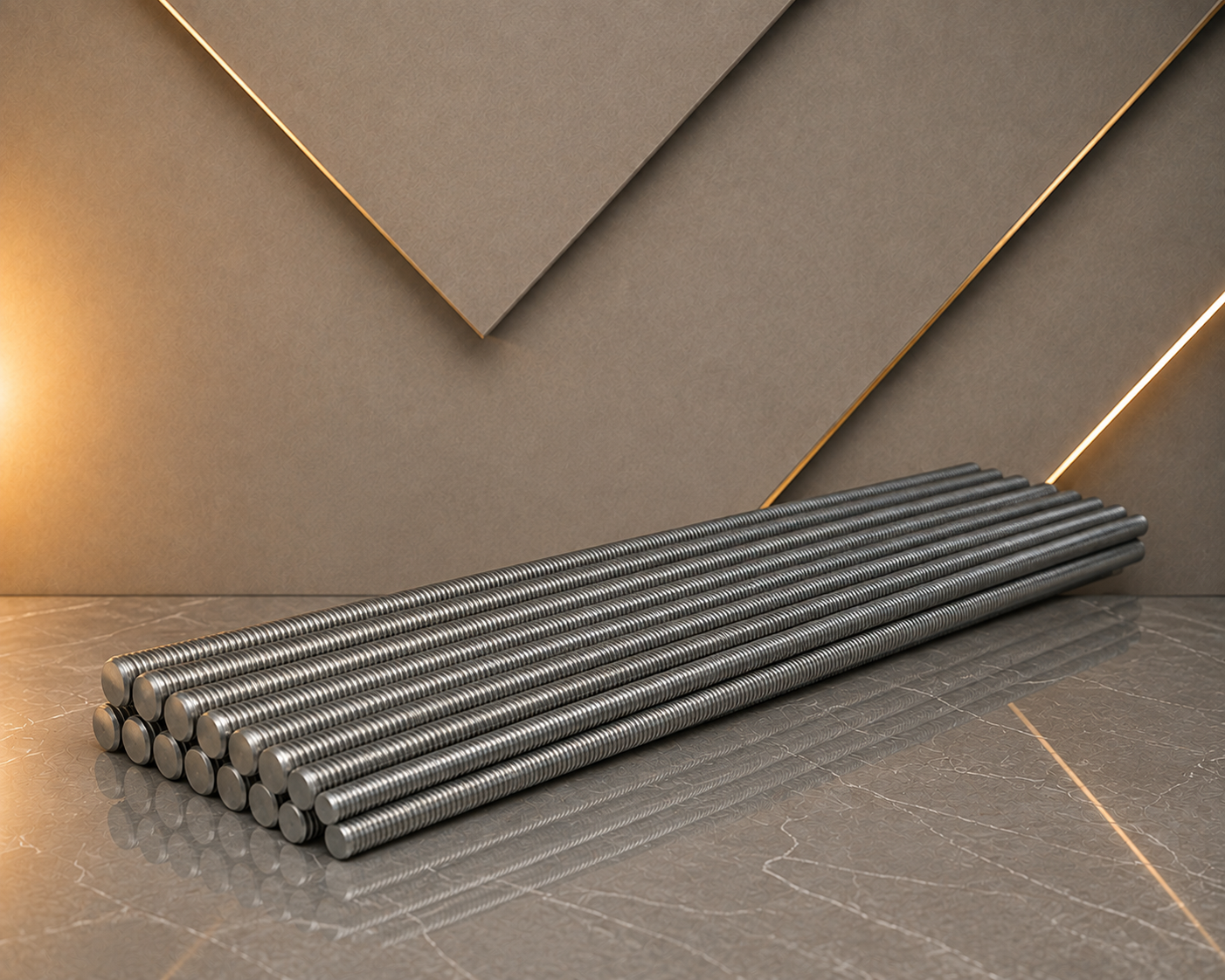

Threaded Rods

Threaded Rods are essential fastening components designed to provide strong and adjustable support for pipe suspension systems, mechanical installations, and structural applications. Their continuous threaded design allows easy height adjustment, secure connections, and flexible installation with various pipe support accessories.

Manufactured from high-quality steel with excellent strength and durability, Threaded Rods offer reliable load-bearing performance and long service life. They are widely used in HVAC systems, plumbing networks, fire protection installations, industrial piping, and construction applications where secure fastening and precise adjustment are required.

⁠ ⁠ ⁠Threaded Rods Product Dimensions

Product Code Size Thread Pitch (MM) Thread Per Inch
DPTR006 M6 1 20
DPTR008 M8 1.25 18
DPTR010 M10 1.5 16
DPTR012 M12 1.75 14
DPTR014 M14 2 13
DPTR016 M16 2 12
DPTR018 M18 2.5 11
DPTR020 M20 2.5 10
DPTR022 M22 2.5 9
DPTR024 M24 3 8
DPTR027 M27 3 7
DPTR030 M30 3.5 8
DPTR033 M33 3.5 7
DPTR036 M36 4 8
DPTR039 M39 4 6
DPTR042 M42 4.5 8
DPTR045 M45 4.5 6
DPTR048 M48 5 8
